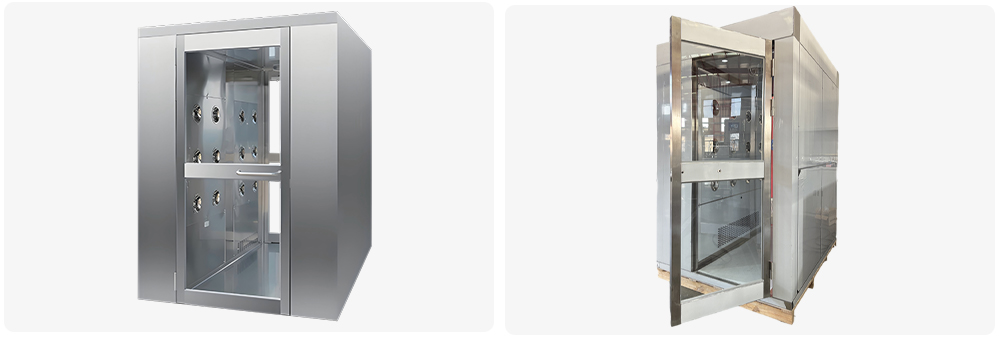

Double Blowing Shower Room

The double-sided blowing air shower serves as a core purification device for safeguarding clean environments. Specifically designed for the entry and exit of personnel and materials into clean zones, it performs the dual functions of powerful dust removal and air-gap isolation. Utilizing a dual-sided blowing design, the unit directs airflow—purified through primary and high-efficiency filters (achieving a filtration efficiency of 99.99%)—at speeds exceeding 25 m/s through rotatable nozzles. This ensures 360-degree coverage that reaches every surface corner, thereby rapidly eliminating dust particles.
The equipment features an intelligent PLC control system, automatic activation via infrared sensors, and a dual-door interlocking mechanism to prevent cross-contamination. With an adjustable blowing duration ranging from 10 to 99 seconds, the unit offers convenient and user-friendly operation. Its modular structure facilitates easy installation and transport, while material options—including stainless steel or cold-rolled steel—make it suitable for diverse sectors such as electronics manufacturing, pharmaceuticals, and food processing. Through continuous air recirculation and rigorous sealing, the system effectively blocks the intrusion of impure air, thereby assisting cleanrooms in maintaining their required standards of cleanliness.

Product Features

In cleanroom operations, the movement of personnel and materials poses the greatest risk to maintaining cleanliness. Our dual-blowing air shower is specifically designed to address this critical challenge; it serves not merely as a doorway, but as an “intelligent airlock” situated between your clean zone and the external environment, safeguarding the integrity of your production environment through a comprehensive purification solution.

1、360° Comprehensive Purification

To address the issue of incomplete coverage in traditional units, this product features a powerful dual-side blowing design. Air purified by high-efficiency filters (99.99% efficiency) is ejected from rotatable nozzles at speeds exceeding 25m/s. This achieves 360° coverage, thoroughly removing dust particles from clothing and surfaces without leaving any dead corners.

2、Intelligent Interlocking for Strict Isolation

To prevent cross-contamination, the unit is equipped with an advanced PLC control system and infrared sensors. The electronic interlocking system strictly separates the clean and non-clean zones by ensuring both doors cannot be opened simultaneously. With an adjustable blowing time of 10-99 seconds, you can balance purification thoroughness with operational efficiency based on your specific standards.

3、Robust & Modular Design for Low Maintenance

Built for industrial durability, the unit is available in Stainless Steel or Cold-rolled Steel with powder coating, offering excellent corrosion resistance and ease of cleaning. Its modular structure simplifies transportation and installation while facilitating future maintenance, making it a cost-effective, long-term solution for electronics, pharmaceutical, and food industries.
