Productchareristics
1. The fan adopts a German EBM direct-drive high-efficiency centrifugal fan, featuring long lifespan, low noise, maintenance-free operation, low vibration, and stepless speed regulation. The fan is reliable and has a service life exceeding 50,000 hours.
2. Particularly suitable for modular cleanroom production lines, it can be used individually or in series to form a Class 100 assembly line, depending on process requirements.
3. The casing structure is made of stainless steel, aluminum alloy, and cold-rolled steel plate, making it lightweight, corrosion-resistant, rust-proof, and aesthetically pleasing.
4. Before leaving the factory, each product undergoes individual scanning and testing with a particle counter according to US Federal Standard 209E to ensure quality.

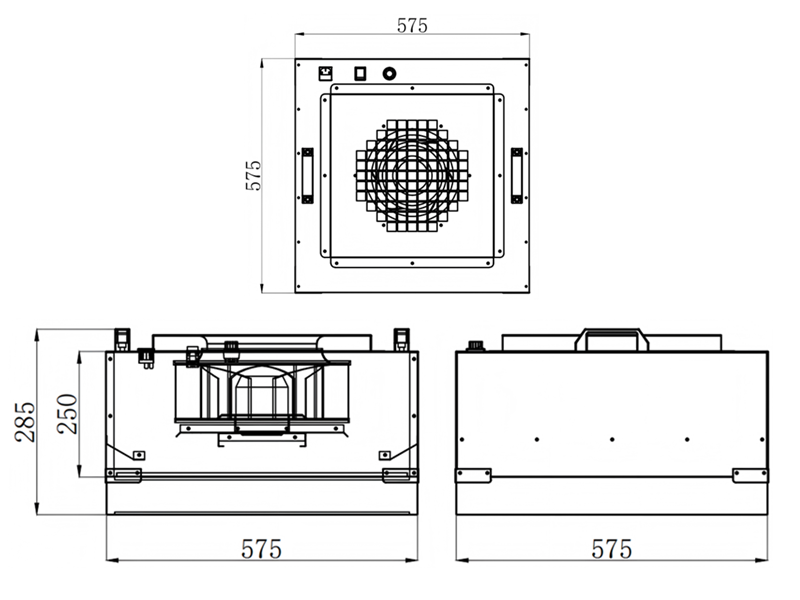

Product Specifications

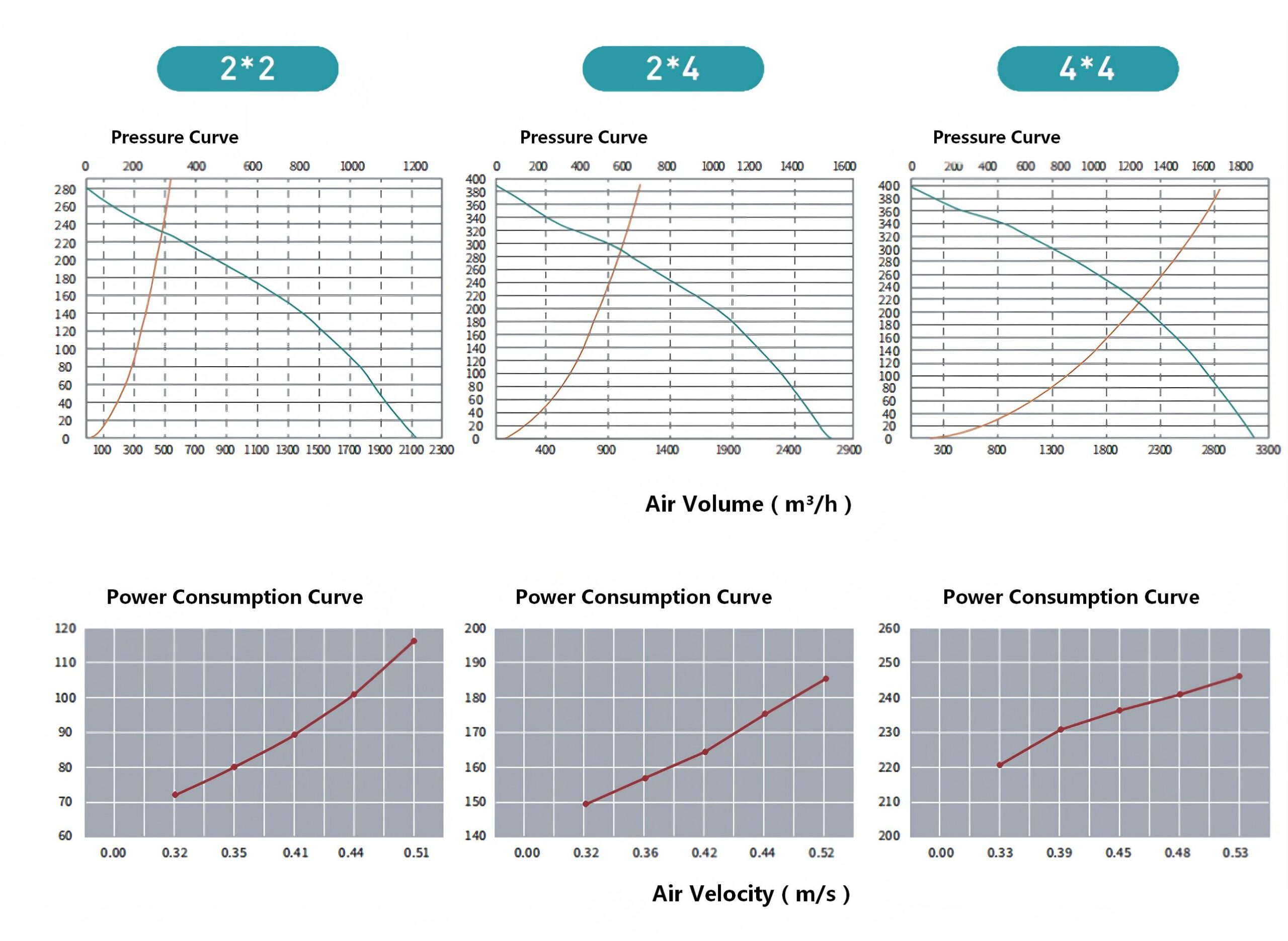

Wind Pressure Power Consumption Curve

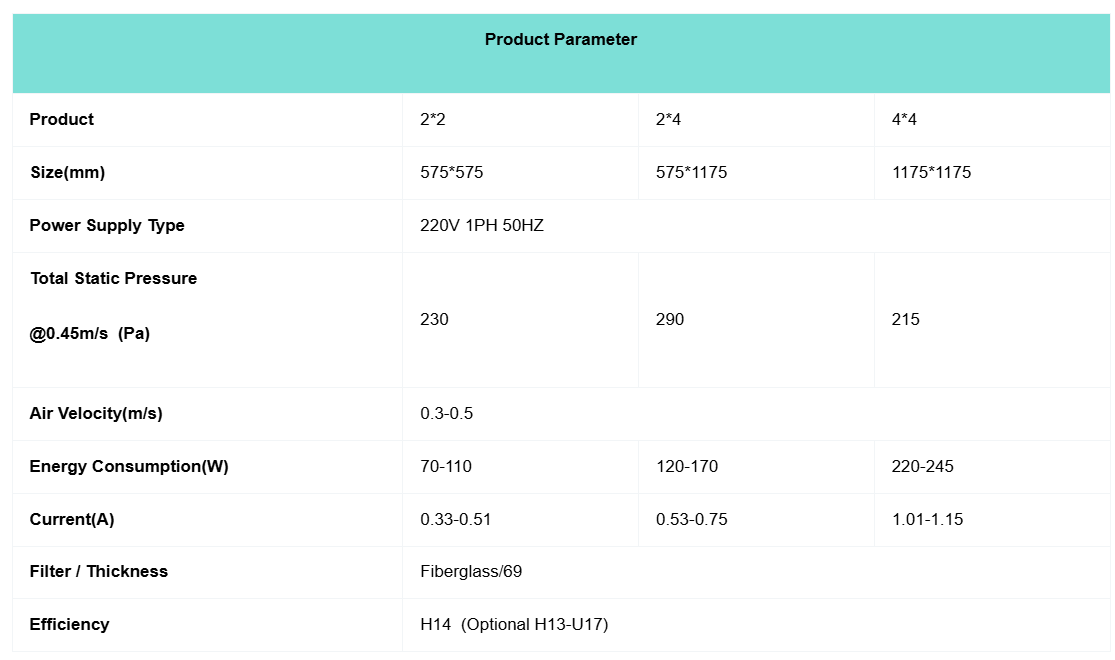

Product Parameter
|
Product Parameter |
|||
| Product | 2*2 | 2*4 | 4*4 |
| Size(mm) | 575*575 | 575*1175 | 1175*1175 |
| Power Supply Type | 220V 1PH 50HZ | ||
| Total Static Pressure
@0.45m/s (Pa) |
230 | 290 | 215 |
| Air Velocity(m/s) | 0.3-0.5 | ||
| Energy Consumption(W) | 70-110 | 120-170 | 220-245 |
| Current(A) | 0.33-0.51 | 0.53-0.75 | 1.01-1.15 |
| Filter / Thickness | Fiberglass/69 | ||
| Efficiency | H14 (Optional H13-U17) | ||
