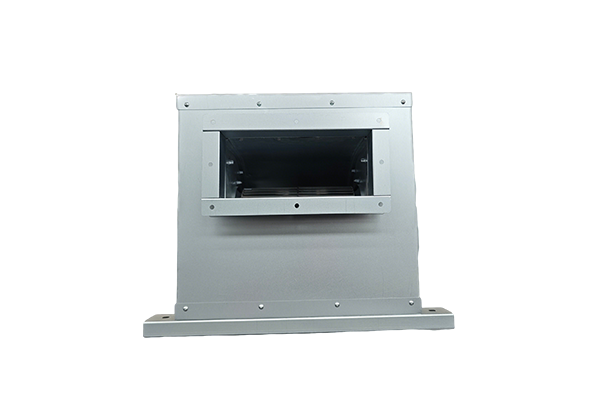

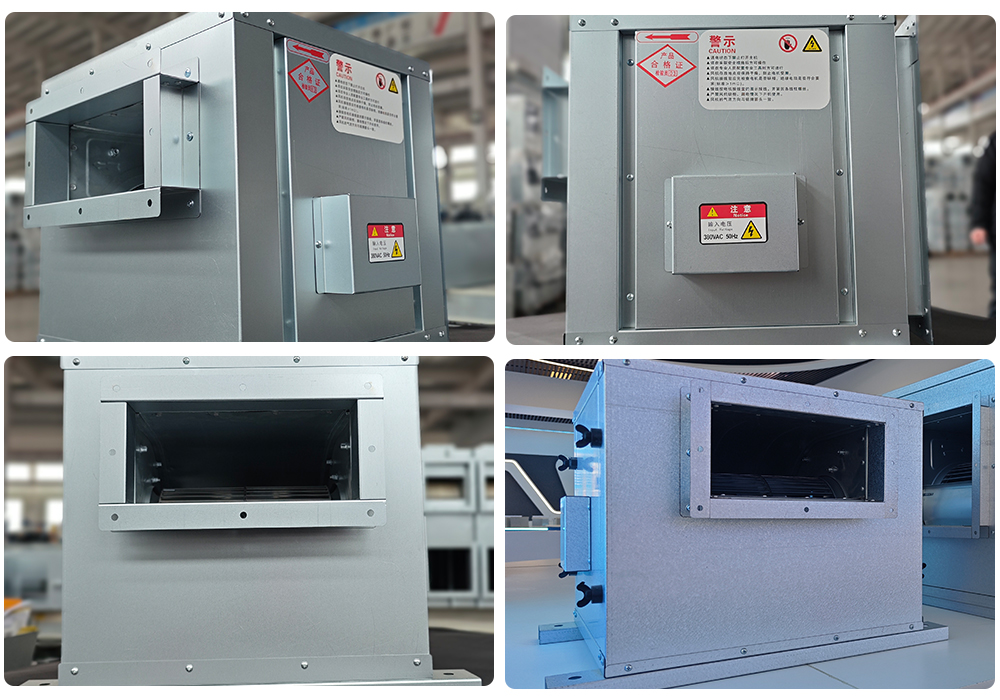

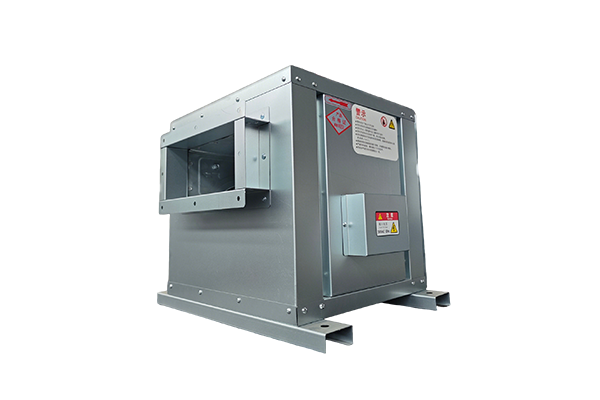

Low-noise operation creates a comfortable environment, while intelligent control adapts to diverse scenario requirements. Space-saving design facilitates installation, and reliable performance reduces maintenance costs. Suitable for ventilation, dust removal, heat dissipation, cooling, and air purification, improving production efficiency and spatial quality, and meeting the continuous operation requirements under harsh conditions.
Airflow range: 1500-2000 m³/h
Voltage: 380V
Main technical parameters of the fan:

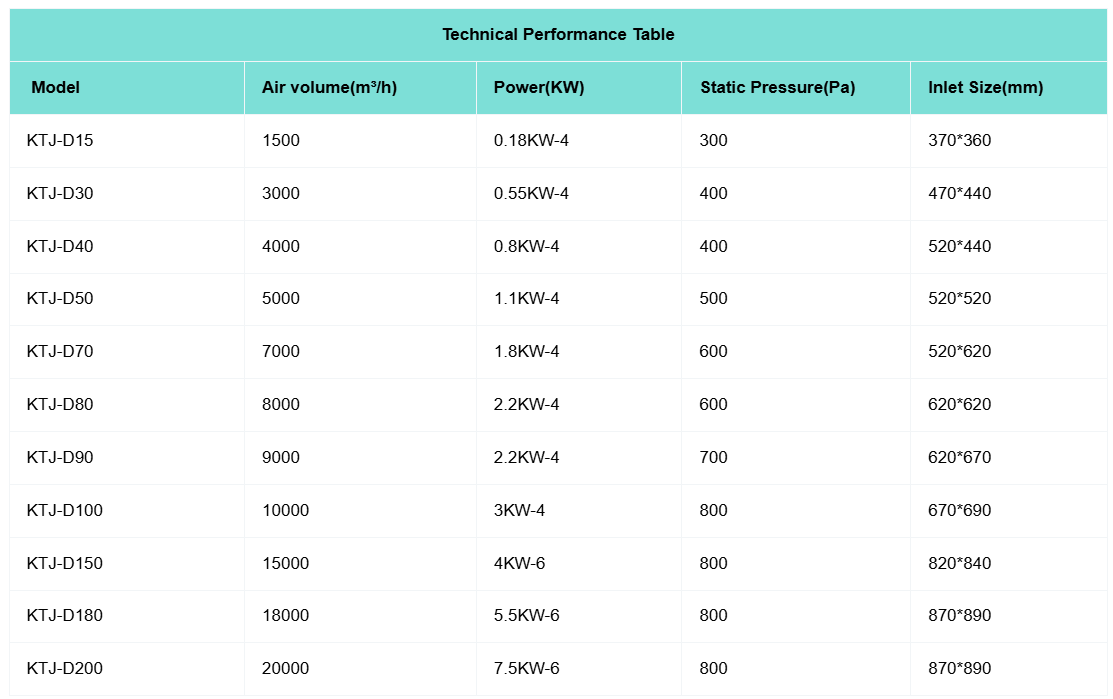

| Technical Performance Table | ||||
| Model | Air volume(m³/h) | Power(KW) | Static Pressure(Pa) | Inlet Size(mm) |
| KTJ-D15 | 1500 | 0.18KW-4 | 300 | 370*360 |
| KTJ-D30 | 3000 | 0.55KW-4 | 400 | 470*440 |
| KTJ-D40 | 4000 | 0.8KW-4 | 400 | 520*440 |
| KTJ-D50 | 5000 | 1.1KW-4 | 500 | 520*520 |
| KTJ-D70 | 7000 | 1.8KW-4 | 600 | 520*620 |
| KTJ-D80 | 8000 | 2.2KW-4 | 600 | 620*620 |
| KTJ-D90 | 9000 | 2.2KW-4 | 700 | 620*670 |
| KTJ-D100 | 10000 | 3KW-4 | 800 | 670*690 |
| KTJ-D150 | 15000 | 4KW-6 | 800 | 820*840 |
| KTJ-D180 | 18000 | 5.5KW-6 | 800 | 870*890 |
| KTJ-D200 | 20000 | 7.5KW-6 | 800 | 870*890 |
