The Liquid-Seal High-Efficiency Air Supply Diffuser is a specialized air outlet equipped with a replaceable high-efficiency filter, designed specifically for the terminal air supply stage in biological cleanrooms. Comprehensive in its functionality, it strictly adheres to the validation and testing standards mandated by pharmaceutical regulatory bodies, and has consequently been widely adopted by numerous renowned pharmaceutical enterprises. The housing is available in a choice of electrostatically powder-coated cold-rolled steel or stainless steel, offering both aesthetic appeal and exceptional corrosion resistance. Furthermore, its unique liquid-seal design serves to further enhance the product’s sealing integrity.

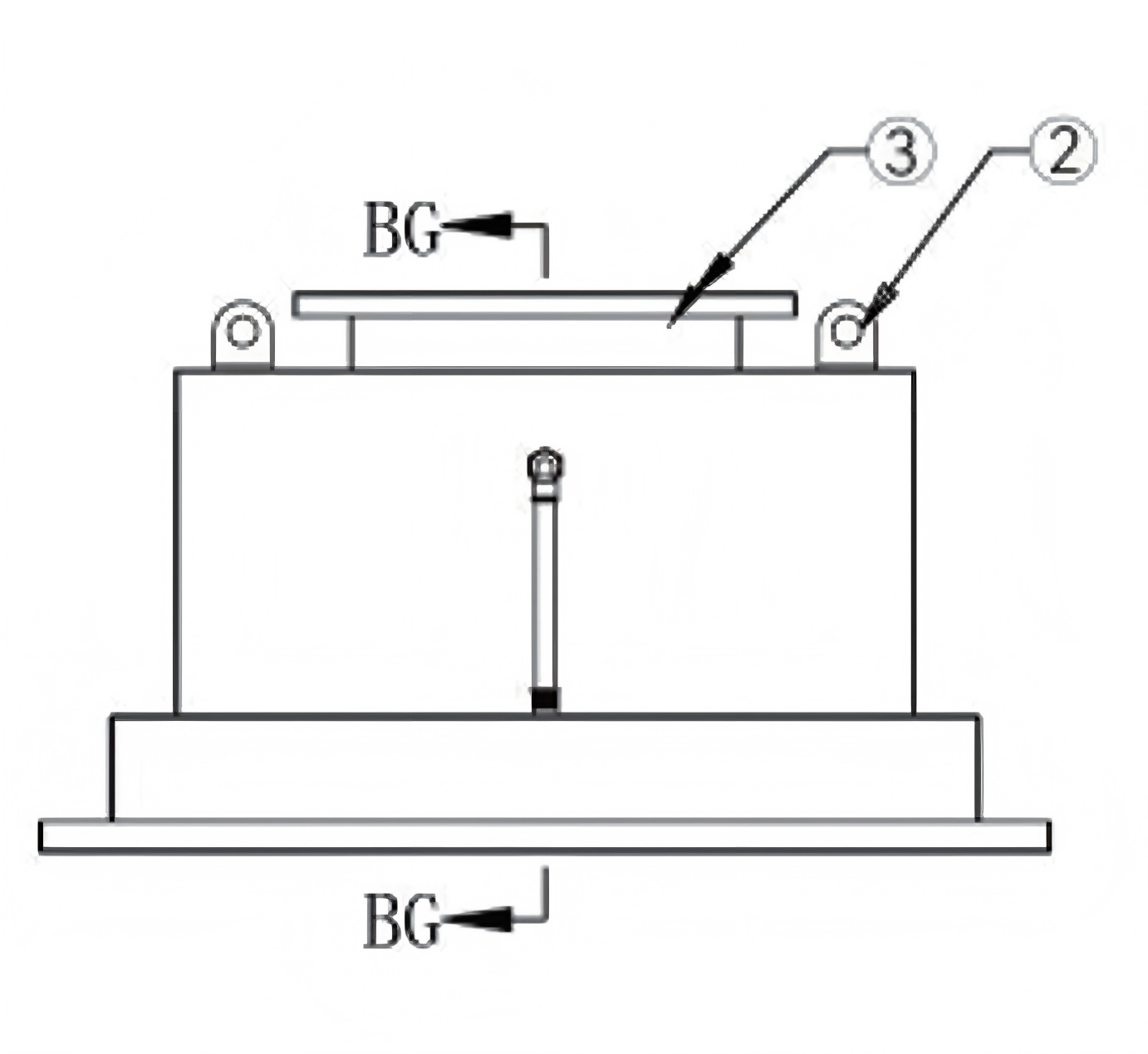

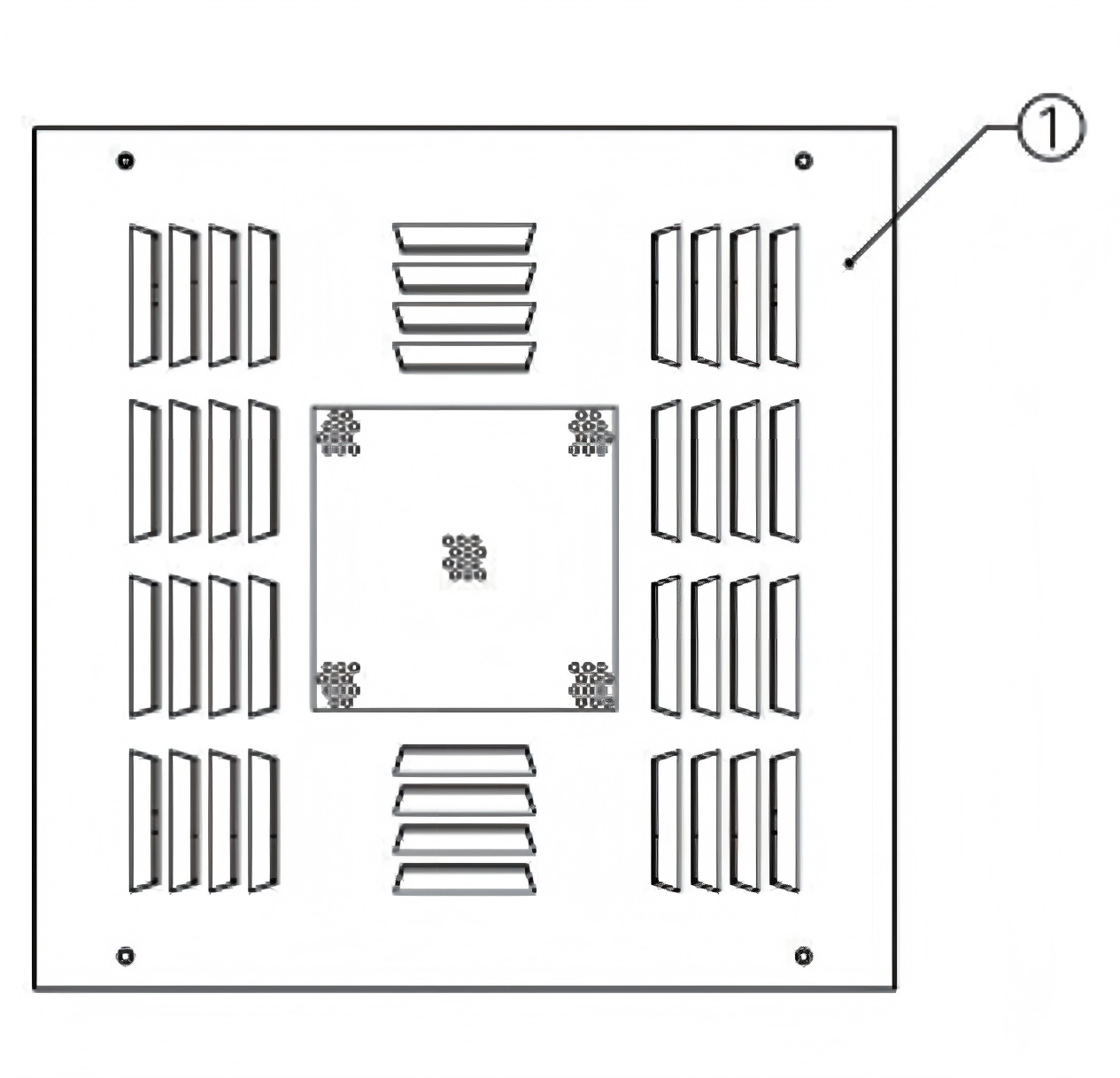

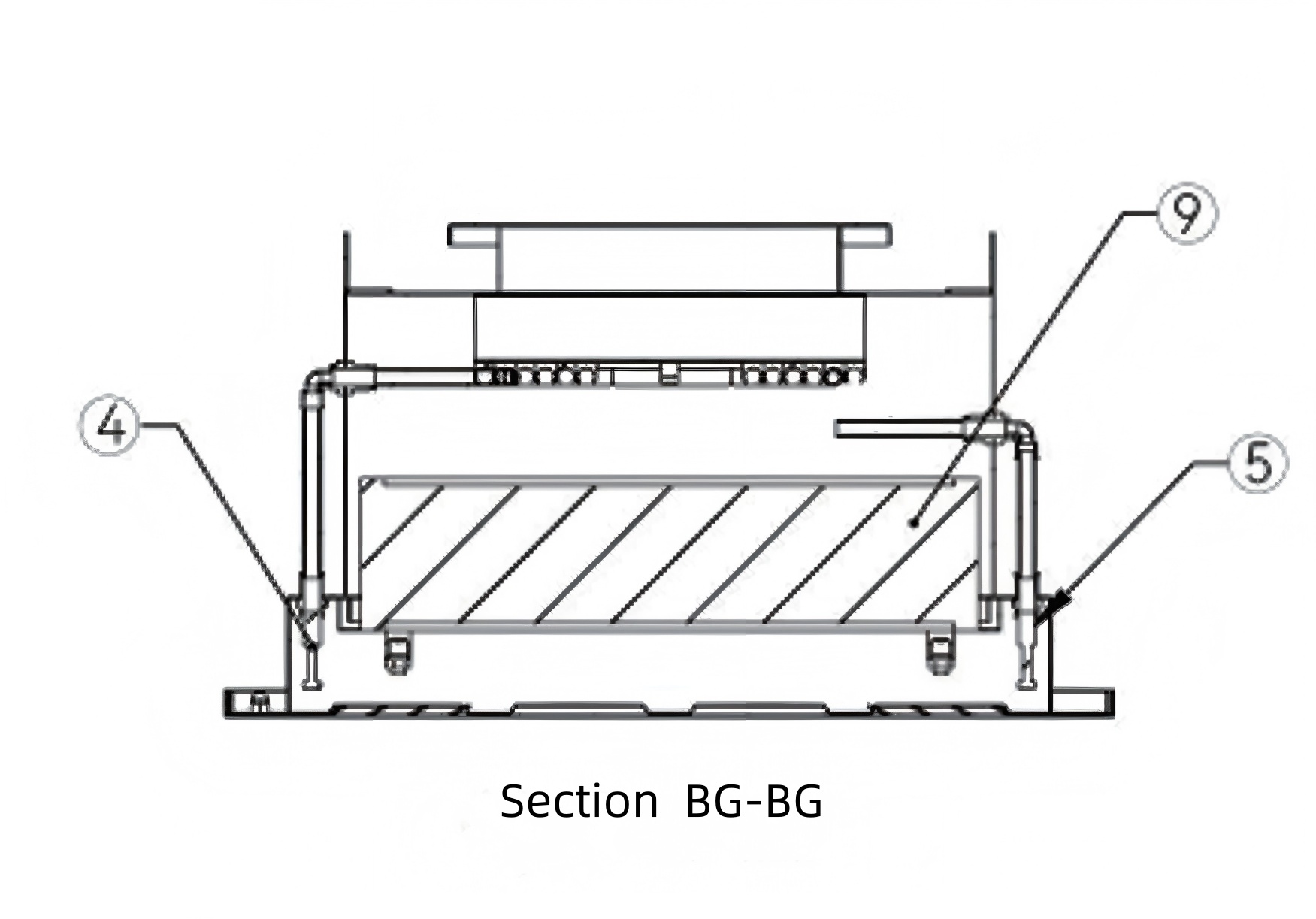

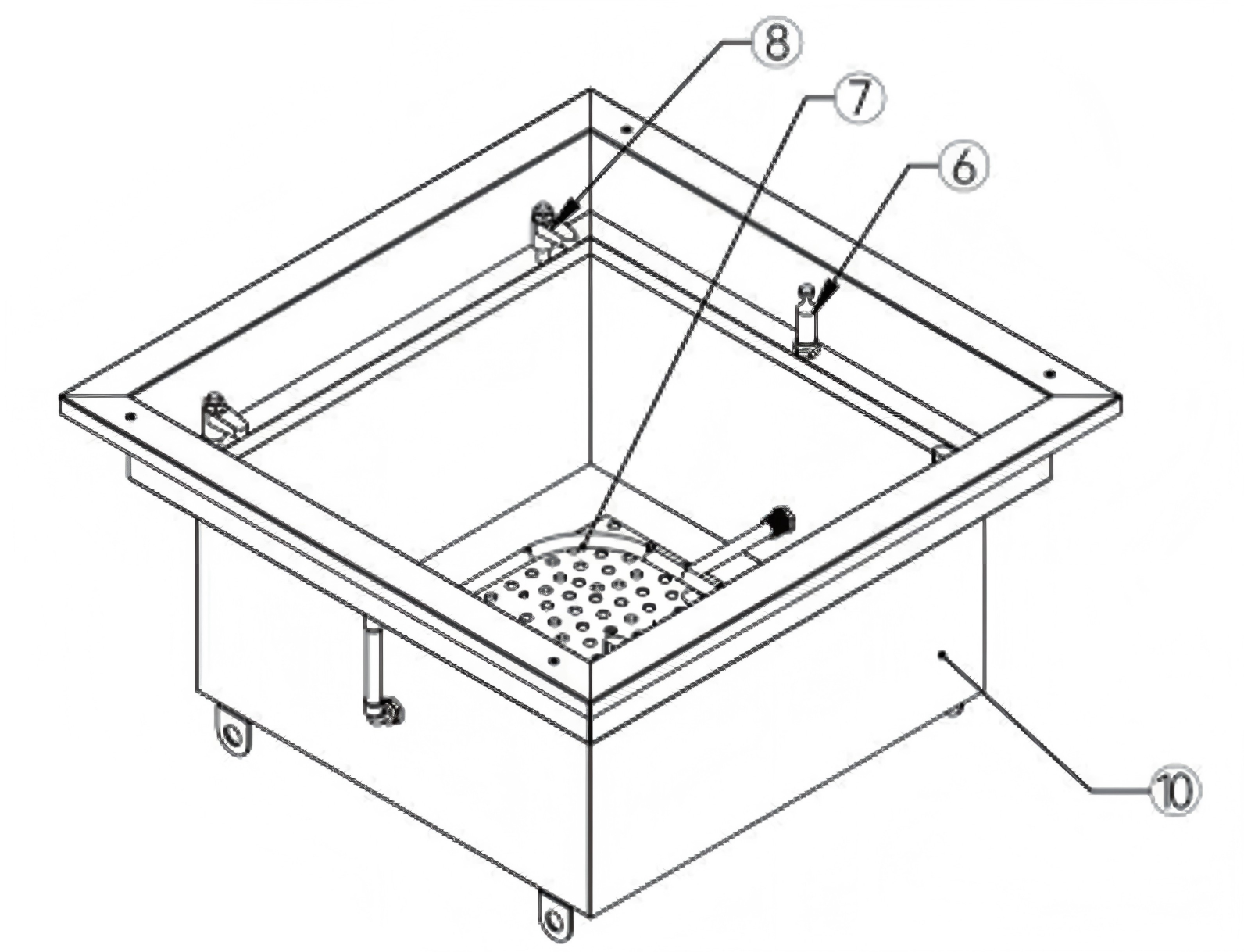

PRODUCT SPECIFICATIONS
PRODUCT CHARACTERISTICS
1. Widely applicable to a variety of settings.
2. Employs liquid-seal groove technology to ensure airtightness.
3. The housing surface features an electrostatic powder-coated finish, offering exceptional corrosion resistance, while the liquid-seal groove design provides a distinctive aesthetic.
4. The filter frame is securely supported by clamping components positioned around the perimeter of the housing, facilitating rapid filter replacement.
5. Equipped with a circular smoke-generating tube at the top to ensure uniform smoke distribution.

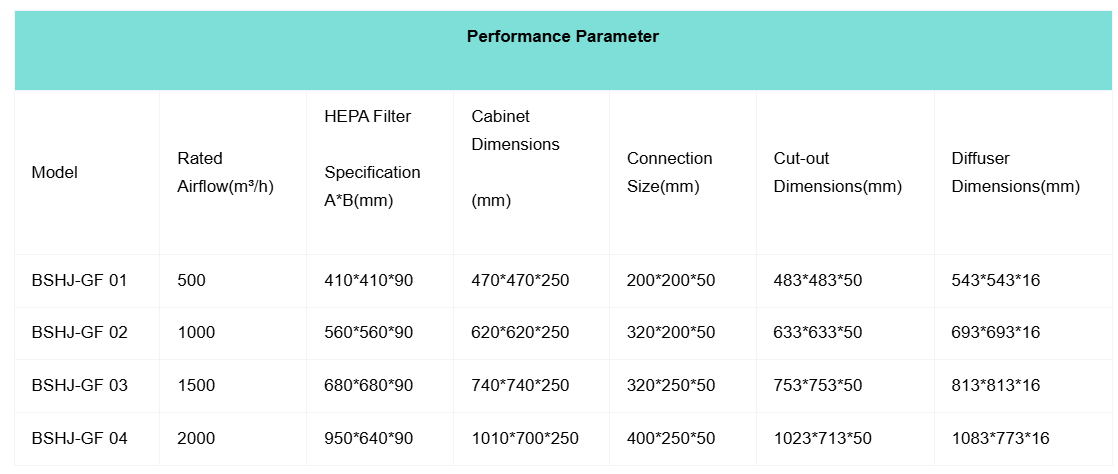

PERFORMANCE PARAMETER
|
Performance Parameter |
||||||
| Model | Rated Airflow(m³/h) | HEPA Filter
Specification A*B(mm) |
Cabinet Dimensions
(mm) |
Connection Size(mm) | Cut-out Dimensions(mm) | Diffuser Dimensions(mm) |
| BSHJ-GF 01 | 500 | 410*410*90 | 470*470*250 | 200*200*50 | 483*483*50 | 543*543*16 |
| BSHJ-GF 02 | 1000 | 560*560*90 | 620*620*250 | 320*200*50 | 633*633*50 | 693*693*16 |
| BSHJ-GF 03 | 1500 | 680*680*90 | 740*740*250 | 320*250*50 | 753*753*50 | 813*813*16 |
| BSHJ-GF 04 | 2000 | 950*640*90 | 1010*700*250 | 400*250*50 | 1023*713*50 | 1083*773*16 |
