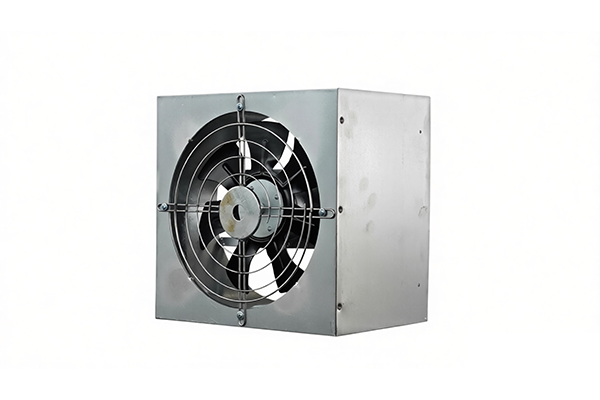

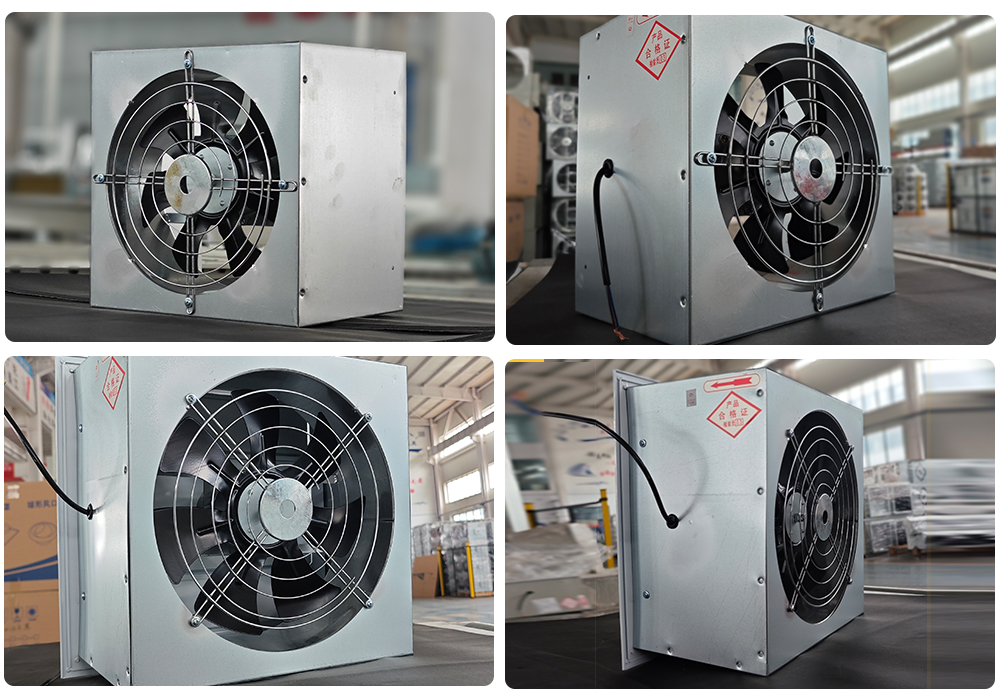

The Square Wall-Mounted Axial Fan is a highly efficient ventilation device designed for wall installation. Utilizing an axial-flow fan structure, it directs airflow linearly along the fan’s axis, thereby achieving high-volume, low-pressure ventilation. It is widely employed in industrial and commercial settings for air extraction and ventilation purposes.
|

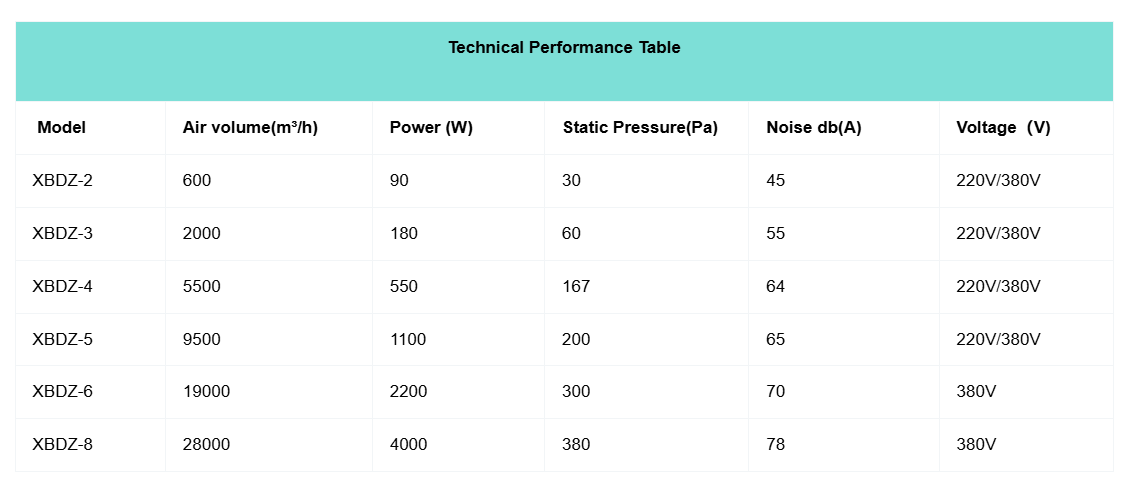

Technical Performance Table |
|||||
| Model | Air volume(m³/h) | Power (W) | Static Pressure(Pa) | Noise db(A) | Voltage(V) |
| XBDZ-2 | 600 | 90 | 30 | 45 | 220V/380V |
| XBDZ-3 | 2000 | 180 | 60 | 55 | 220V/380V |
| XBDZ-4 | 5500 | 550 | 167 | 64 | 220V/380V |
| XBDZ-5 | 9500 | 1100 | 200 | 65 | 220V/380V |
| XBDZ-6 | 19000 | 2200 | 300 | 70 | 380V |
| XBDZ-8 | 28000 | 4000 | 380 | 78 | 380V |
